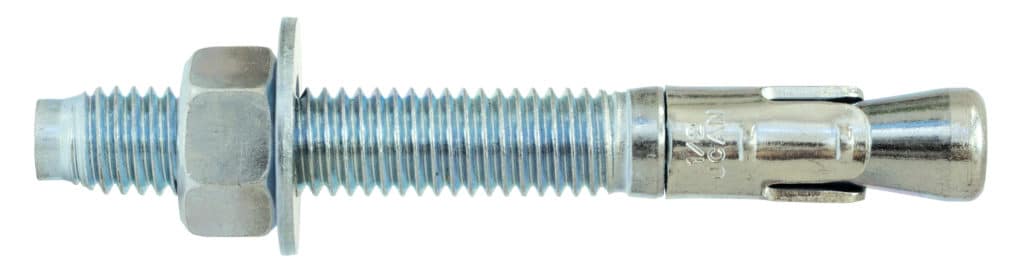

UCAN TZ torque controlled mechanical expansion wedge anchors have a Category 1 classification. They are used to resist static, wind and seismic tension and shear loads in cracked and uncracked normal weight concrete that has a specified compressive strength of between 2,500 psi (17.2 MPa) and 8,500 psi (58.6 MPa). UCAN TZ wedge anchors are fully threaded, zinc plated carbon steel anchors assembled with a unique 3 segment clip. They include a nut and washer and are available in diameters ranging from 3/8” to 3/4”.

Typical Applications:
Steel base plates
Storage racking
Strut and cable tray
Seating
Pipe support
Sprinkler system

• Seismic and cracked concrete applications
• Surface, through and stand-off anchoring
• Fast torque – up
• Anchor size = hole size
• Fully threaded
• Length ID code and “+” symbol (strength design anchor)
• “Dog point” to prevent thread damage during installation
